Cartoning Machines
Automatic Horizontal Cartoning Machine
A servo-ready automatic horizontal cartonator for pharmaceutical blisters, bottles, vials, ampoules, tubes and pouches. The STHC platform combines carton and leaflet pick-up, product insertion, carton closing and discharge in one synchronized system.
ModelsSTHC-120 / STHC-150 / STHC-200
OutputUp to 120, 150 or 200 cartons per minute, subject to product and carton
Machine demonstrations

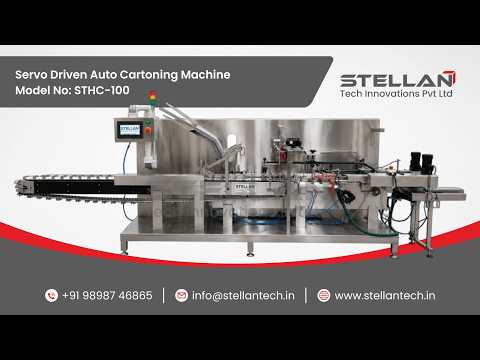

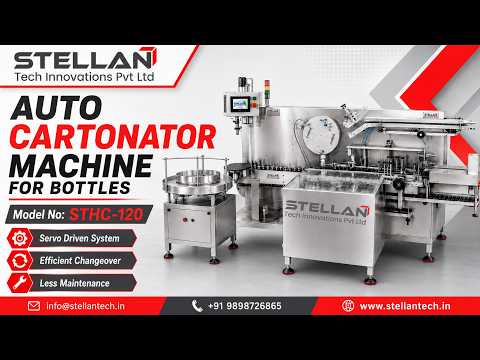

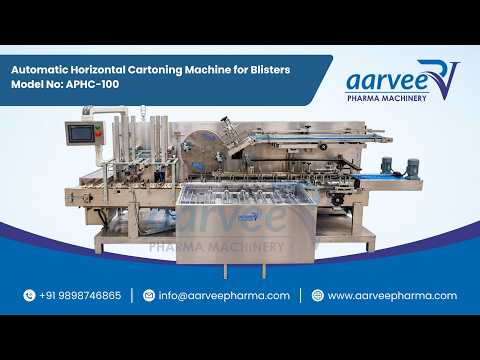

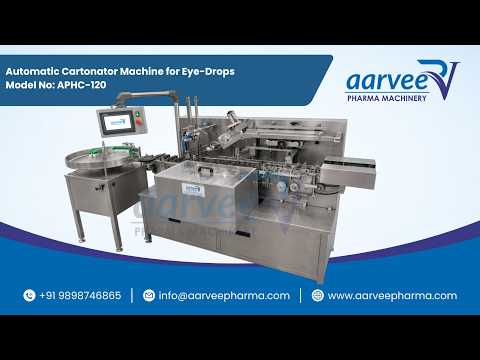

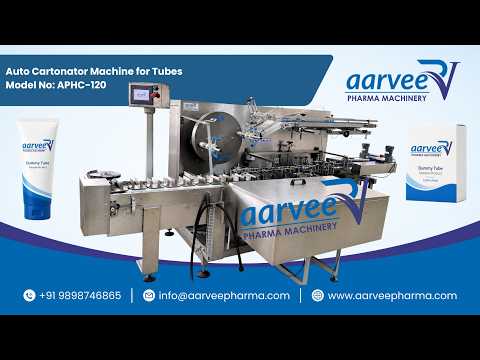

Automatic Horizontal Cartoning Machine videos
View application trials and machine configurations from our video library.
Application engineering overview
Automatic horizontal cartonator for blister, bottle, tube and pouch packaging
The STHC automatic horizontal cartoning machine is an end-load or side-load cartoner that erects a pre-folded carton, synchronizes the product and leaflet, inserts the pack, closes the carton and transfers it for downstream handling. This automated cartoning platform can be engineered as a blister cartonator, bottle cartoner, vial cartoning machine, pharmaceutical cartoner or automatic tube cartoning machine with feeding and inspection selected for the approved format.
As a cartoning machine manufacturer in India, Stellan Tech Innovations develops the machine configuration after reviewing the product, carton, leaflet, required output, available floor space and upstream or downstream interfaces.
Suitable applications
Configured around your product format
Explore the pharmaceutical, food and consumer-product formats supported across our cartoning machinery portfolio.
Blister

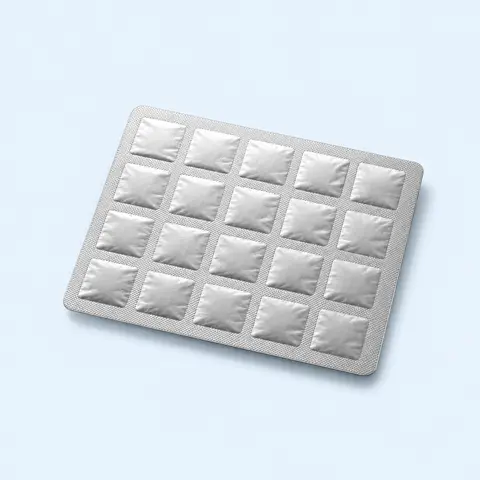

Strip
Bottle
Vial
Ampoule
Eye Drop
Nasal Spray
Food Product
Pouches
Tray
Machine configuration
Key features
- Automatic carton pick-up, opening and product insertion
- No product–no carton and related process interlocks
- Tuck-in and hot-melt glue closing options
- Servo-driven functions available according to the selected model
- Leaflet insertion, coding and vision-inspection options
Reference data
Technical specification
| Carton type | Pre-folded tuck-in, gluing, bottom-lock, lock-bottom or hanger type |
|---|---|
| Frame construction | Stainless steel SS 304, GMP-oriented construction |
| Control system | Mitsubishi, Inovance or Delta motion PLC and HMI |
| Carton magazine | Long magazine, capacity according to model |
| Pneumatics | Festo, SMC, Janatics or CKD |
| Power supply | 3 phase, 440 V, 50 Hz |
| Air supply | 5–6 kg/cm² |
| Carton board | Typically 280–350 GSM, subject to approved sample |
| Leaflet | Typically 55–60 GSM, pre-folded or with optional folding system |
Specifications may change according to product samples, required output and continuous technical improvement.
Selection resources
Plan the machine around your complete packaging requirement
Review the application, loading-direction and URS guidance before requesting a technical proposal.
Cartoning machine selection guide
How to Select a Cartoning Machine for Your Product and Production Line
A practical engineering guide for comparing cartoners by application fit instead of relying on headline speed or generic specifications.
8 minute readRead engineering guide ↗
Cartoner architecture comparison
Horizontal vs Vertical Cartoning Machine: An Application-Based Comparison
A clear comparison of side-load and top-load cartoning systems for pharmaceutical, food, cosmetic, personal-care and FMCG products.
7 minute readRead engineering guide ↗
Project preparation checklist
Cartoning Machine URS and Sample Checklist for a Technical Proposal
The information and physical samples that help a cartoning-machine manufacturer prepare a clearer, more comparable technical proposal.
9 minute readRead engineering guide ↗Get a machine proposal
Share your samples and required speed
Include your product, carton or container size, closure type, leaflet details and target output. Our team will recommend the suitable configuration.
